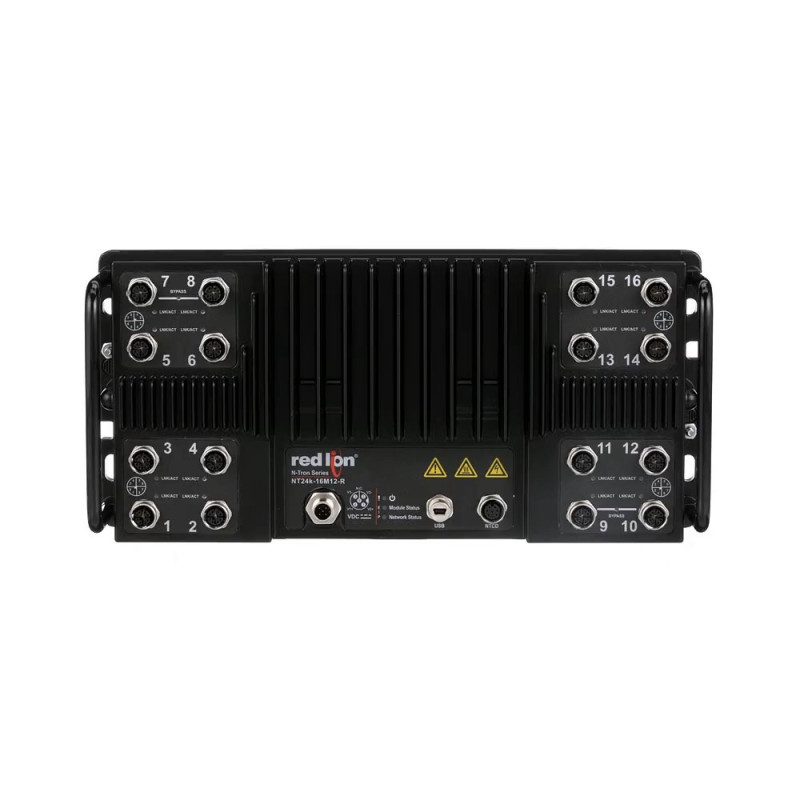

Red Lion’s versatile NT24k-16M12 managed switches feature sixteen (16) all-Gigabit copper M12 X-code ports and is housed in a dust proof and water resistant IP67-rated enclosure. The NT24k-16M12 is designed to provide reliable operation in railway (UNE-EN 50155) and other industrial applications subject to shock, vibration and other extreme conditions.

specifications:

• 16 10/100/1000BaseTX Copper M12 X-Code Ports
• All ports support IEEE 802.3af/at PoE+
  • PoE budget configurable up to 30W per port across any of 16 ports, up to 240 W total
• -40°C to 85°C Operating temperature
• >2M hours MTBF
• IP67 Rated enclosure
  • Dustproof
  • Protection against low/high pressure water jets
  • Safe for temporary immersion in water
• 10-49 VDC redundant power inputs
• ESD and surge protection on all ports
• Auto Sensing 10/100/1000BaseTX, Duplex, and MDIX
• Store-and-forward Technology
• 16k MAC Addresses
• USB Configuration Port
• Full wire speed communications
• Auto sensing speed and flow control
• Backup and restore via recovery card or XML configuration file
• Fully Managed Features:
  • Jumbo Frame Support
  •  SNMP v1, v2, v3
  •  Web Browser Management
  •  Detailed Ring Map and Fault Location Charting
  •  802.1d, 802.1w, 802.1D RSTP
  •  Port Trunking and Mirroring
  •  802.1Q tag VLAN and Port VLAN
  •  802.1x with RADIUS Remote Server Authentication
  •  802.1p QoS, Port QoS and DSCP
  •  DHCP Client
  •  Configurable event log
  •  Syslog
  •  SNTP (Simple Network Time Protocol)
  •  Multi-Member N-Ring™ Technology with ~30ms Healing
  •  N-Link™ Redundant Ring Technology
  •  N-View™ Monitoring and Firmware Management Technology
  •  EtherNet/IP™ CIP™ Messaging
  •  Web configuration
  •  IGMP Auto Configuration
