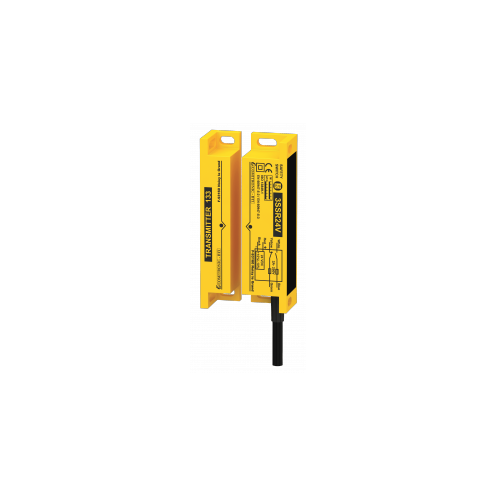

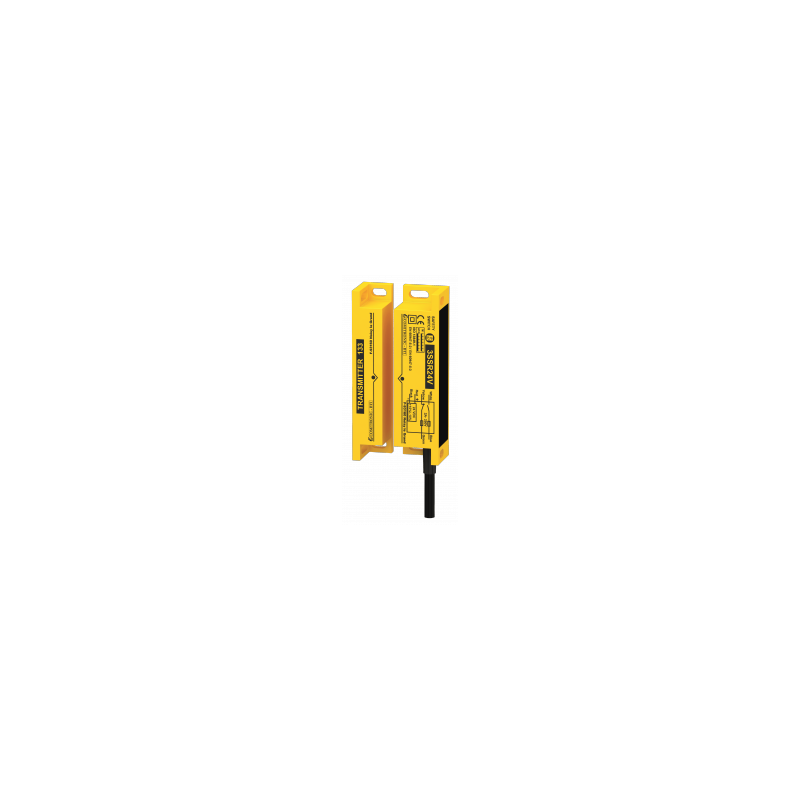

SSR- Safety Switch Stand alone - CAT 1

• Safety category without an external controller: 1
• Cycle before dangerous failure: B10d = 2,000,000 at 2A
• Max. activation distance 3SSR24V/5SSR24BX/5SSR24BX-US:
• 8 mm, 2 mm hysteresis
• Max. activation distance 2SSR24V/2SSR24BX:
• 4 mm, 2 mm hysteresis
• Safety contacts/diagnostics 3SSR24V:
• 1 x NO 2A/250V / 1 x NF 2A/250V auxiliary
• Security contacts/diagnostics 5SSR24BX and 5SSR24BX-US:
• 2 x NO 2A/250V / 1 x PNP NF 250mA auxiliary (24V)
• Security contacts 2SSR24V: 2 x NO 2A/250V
• Security contacts 2SSR24BX:
• 1 x NO 2A/250V and 1 x NF 2A/250V
• Detection encoding 3SSR24V, 5SSR24BX/5SSR24BX-US: single inviolable code
• Detection encoding 2SSR24V and 2SSR24BX:
• 8 inviolable codes
• Indicators 2SSR24V, 2SSR24BX, 3SSR24V and 5SSR24BX:
• Red LED indicating code absence (not transmitter)
• Indicator 5SSR24BX-US: Two-color red/green LED
• Reset: automatic
• Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
• Mounting position: 2 (double wall brackets)
• Matierial PA6: 2SSR24V, 2SSR24BX, 3SSR24V,
• 5SSR24BX, 5SSR24BX-MKT and 5SSR24BX-US
• Material INOX 316L mirror polished: 5SSR24BX-OX and
• 5SSR24BX-OX-MKT
• Electrical Connection: 3, 6, 12m cable or 50cm cord with M12 connector (UL20549 PUR) for5SSR24BX-OX and 5SSR24BX-OX-MKT
• Water resistance: IP 67/68 (PA6) or IP 69Kwith stainless steel - new generation
• Temperature: -25°C to +60°C
• Marking: PA6 pad printing + serial number, INOX316L laser engraving with mechanically punched serial number for permanent traceability
