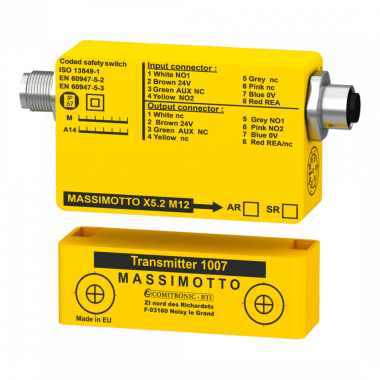

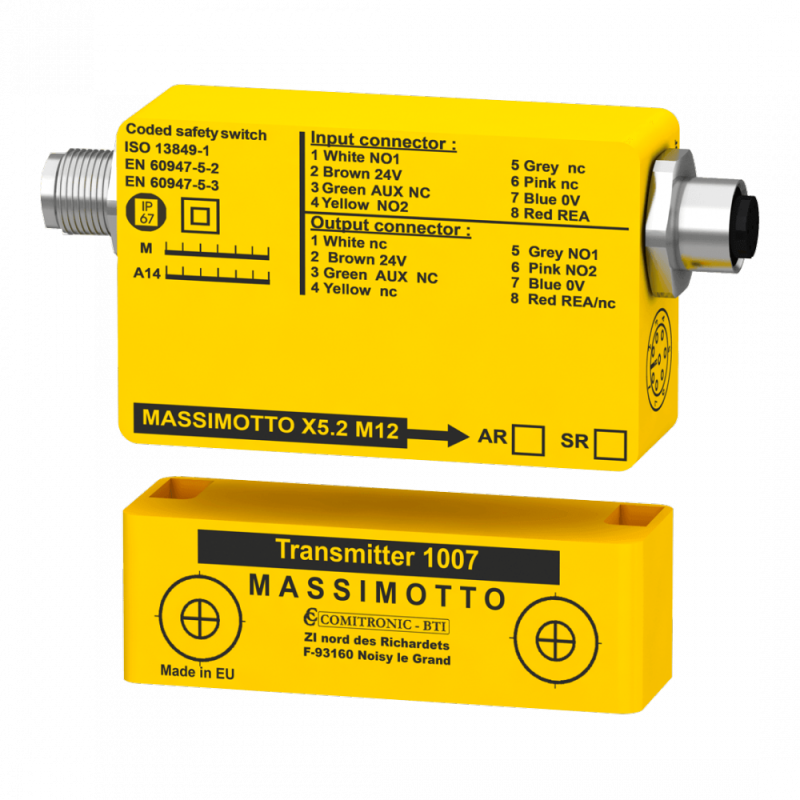

Safety Switch Stand Alone Massimotto X5.2 M12 AR

Safety Switch Stand Alone Massimotto X5.2 M12 AR
Position control for doors / casings on hazardous machinery
Contactless encoded electronic sensor with relay
Category 3 total safety management without an external controller
Suitable for groove profiles and single or double doors
Warranty: 3 years

Technical description

• Level of performance without an external controller: PL = d.
• Level of performance with AWAX controller: up to PL = e.
• Safety category without an external controller: 3.
• Safety Integrity Level: SIL 2.
• Cycle before dangerous failure: B10d = 2,000,000 at 2A.
• Max. activation distance: 8 mm, 3 mm hysteresis.
• Safety contacts/diagnostics: 2 x NO 2A/48V redundant / 1 x PNP 250mA (X5) or 1xNF (X5.2) auxiliary.
• Detection encoding: mono-code inviolable.
• Indicator: LED indicates code recognition.
• Reset: Manual.
• Attachment: 4 tamper-proof M4 screws (optional ref: BH4). Suitable for grooved profiles. Screw caps provided.
• Mounting position: 1.
• Material: Polycarbonate.
• Electrical 2 M12 connectors (X5.2 version for instant serial connection).
• Water resistance: IP 67/68.
• Temperature: -25°C to +60°C.
• Marking: screen printed + serial no. for traceability.
• Certification: TÜV Rheinland 01/205/5238/12.
• License Test Mark 968/EL 214.01/12.
