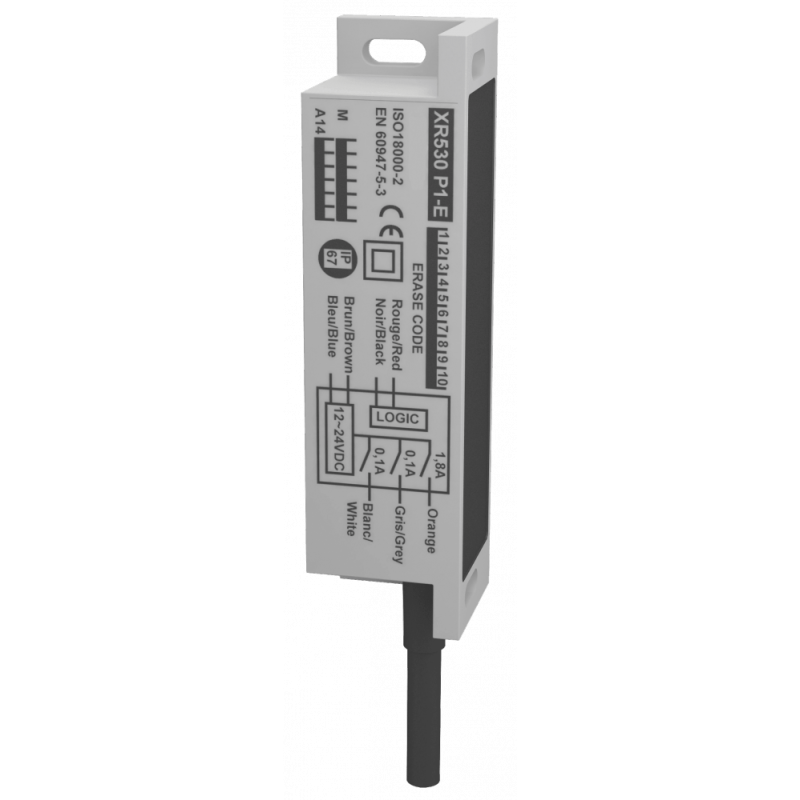

Safety Switch Stand Alone with RFDI XR 530P2

Safety Switch Stand Alone with RFDI 530P2
Controls the position of safety doors/casings with RFID encoding
RFID sensor with 16 million codes
Category 3 total security management without an external controller
Programmable code through auto-learning (no software or PC)
Level of performance with AWAX controller: up to PL = e
Safety category without an external controller: 3 (EN 954-1)
Cycle after dangerous failure: B10d = 2000000 at 2 Amps
Warranty: 3 years

Technical description

• Max activation distance: up to 24 mm.
• Security contact/diagnostics: 2 x redundant NO 2A/48V and 1 x 400mA PNP auxiliary.
• Detection encoding: inviolable multicode.
• Indicator: LED indicates code recognition.
• Reset: automatic.
• Attachment: 4 tamper-proof M4 screws (in base option: BH4).
• Mounting position: 2 (double wall brackets).
• Material: PA6.
• Electrical Connection: 3, 6, 12m cable (UL2464 PVC) or 50cm PUR cable with M12 connector (base + MKT).
• Sealing: IP 67.
• Temperature: -20 °C to +60 °C.
• Marking: pad printing + serial number for traceability.
