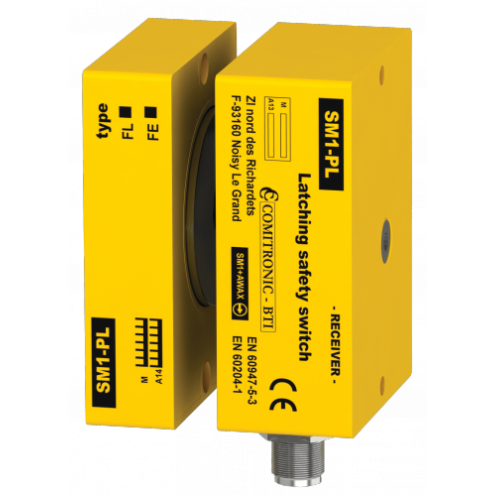

Safety sensor of machine with interlocking SM1, up to 580daN. Position control for doors in dangerous machinery.
It allows to control the closed door position (in machine) or open door (fire), the electromagnetic sensor acts as a safety sensor with a force that is controlled trought tension.
Comitronic has two models of safety sensor, interlocking with voltage or without voltage.
Technical description
- Level of performance with AWAX controller: up to PL = e.
- Safety category: Up to 4 with AWAX controller or PLC SIL 3.
- Time before dangerous failure : MTTFd=100 years.
- Max. detection activation distance: 2mm.
- Holding Force: up to 580N.
- Safety contacts/diagnostics: 2 x NO 400mA max/24V redundant and 1 x PNP 250mA.
- Detection encoding: mono-code inviolable.
- Indicator: LED.
- Reset: automatic or controlled (ref. + OP).
- Attachment: 4 M4 screws (inviolable in new generation and optional ref.: BH4.
- Mounting position: 1.
- Casing material: INOX316L mirror polished (OX version) or POLYCARBONATE (PL version).
- Suction cup material: INOX (SM1+OX) or steel (SM1 + PL-AC).
- Electrical connection: the M12 metal base will be replaced with a 50cm PUR cord with an M12 connector on the new generation.
- Water resistance: IP 67/68.
- Temperature: -25°C to +50°C.
- Marking: laser engraving (OX version) screen printed serial number forntraceability (PL version).
MODEL
|
PRODUCT MODELS |
| Reference | Description | Material |
| SM1-PL-ROP-AC-FL |
Power locking - max. 50daN - steel suction cup - IP54 - flexible counter plate - forced opening of contacts in unlocking mode. |
Polycarnonate |
| SM1-PL-EOP-AC-FL |
Power off locking - max. 30daN - steel suction cup - IP54 - flexible counter plate - forced opening of contacts in unlocking mode. |
Polycarnonate |
| SM1-PL-EOP-OX-FL |
Power off locking -40daN maxi - stainless steel suction cup - IP68 - flexible counter plate - forced opening of contacts in unlocking mode. |
Polycarnonate |
| SM1-PL-ROP-OX-FL |
Power locking -58daN max. - stainless steel suction cup -IP68 - flexible counter plate - forced opening of contacts in unlocking mode. |
Polycarnonate |
| SM1-PL-E-AC-FL |
Power off lock - 30daN - steel suction cup - IP54 - flexible plate counterpart - detects the door position. |
Polycarnonate |
| SM1-PL-R-AC-FL |
Power locking max. 50daN - steel suction cup- IP54 - flexible counter plate - door position detection. |
Polycarnonate |
| SM1-PL-R-OX-FL |
58daN power locking - stainless steel suction cup - IP68 - flexible counter plate - detects the position of the door. |
Polycarnonate |
| SM1-PL-E-OX-FL |
Energized locking 40daN max. - stainless steel suction cup- IP68 - flexible counter plate - detects the position of the door. |
Polycarbonate |
| SM1-OX-E-OX-FL |
Power off locking -40daN - stainless steel suction cups- IP69K - flexible counter plate - detects the position of the door. |
Stainless steel |
| SM1-OX-EOP-OX-FL |
Power off locking -40daN maxi - stainless steel suction cups- IP69K - fixed counter plate - forced opening of contacts in unlocking mode. |
Stainless steel |
| SM1-OX-R-OX-FL |
Power locking -58daN - stainless steel suction cups - IP69K - flexible counter plate - detects the position of the door. |
Stainless steel |
| SM1-OX-ROP-OX-FL |
Power locking -58daN maxi - stainless steel suction cups- IP69K - fixed counter plate - forced opening of contacts in unlocking mode. |
Stainless steel |
