FlexEdge, MÓDULO, 8 ENTRADAS DIGITALES, 8 SALIDAS DIGITALES

FlexEdge, Module, 8 Digital inputs, 8 Digital outputs

DAM00I0DI0000000
Red lion Controls Más productos

I / O to a FlexEdge controller to monitor and control almost any application. With a wide operating temperature range and robust industry certifications, they are designed to thrive in harsh environments.



Política de entrega (editar con el módulo de Información de seguridad y confianza para el cliente)

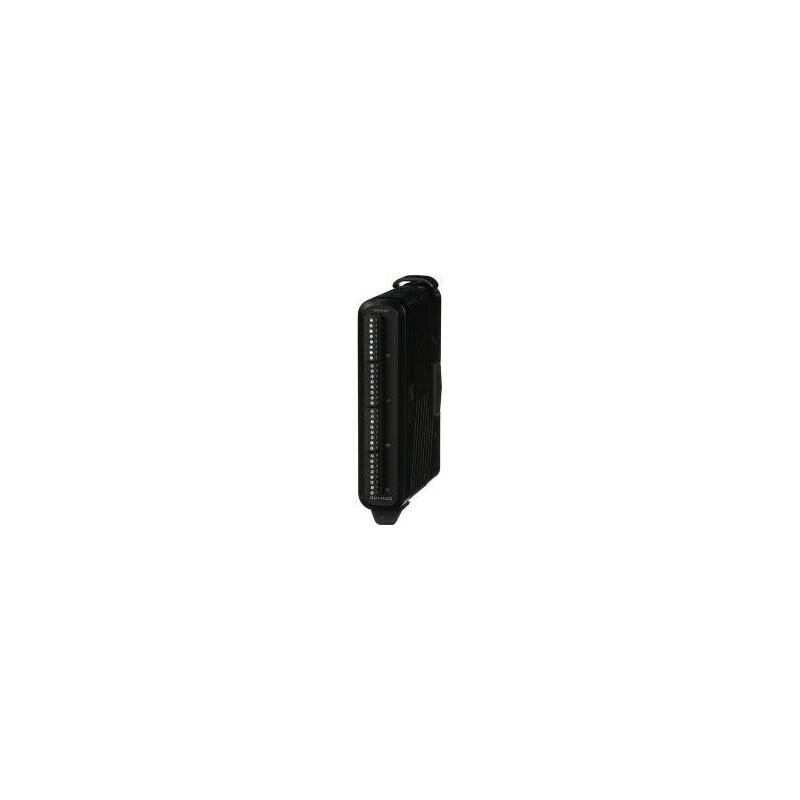

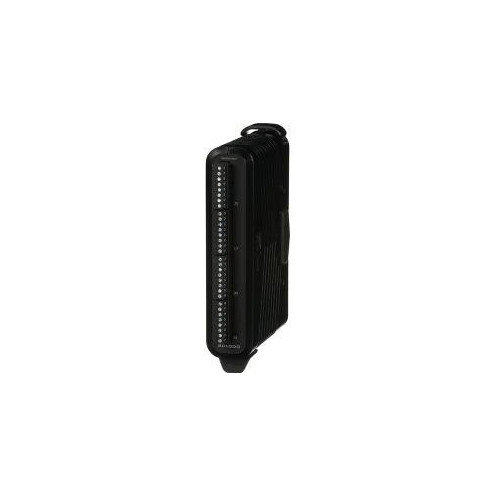

MODULE, 8 DIGITAL INPUTS, 8 DIGITAL OUTPUTS

The 8DI/8DO module is designed for use with the FlexEdge DA70 controller, and features 8 Digital Inputs and 8 SSR Outputs. The module is an ideal choice for monitoring contact or sensor inputs and actuate relays, solenoids, PLC inputs, etc.

The Digital Inputs accept DC inputs or contact closures and are software configured for Sink or source signals. Each input also offers it’s own selectable input filter, as well as high or low-active input setting. The Digital Outputs are capable of switching up to one amp each.

FlexEdge

FEATURES

  • 8 Digital Inputs and 8 SSR Outputs

  • Inputs Feature Individual Sink/Source Configuration

  • Outputs are Sinking with Max of 1A per Channel

  • Offers Complete Isolation; Inputs, Outputs, Power, and Communication

  • Hot Swappable with Zero Configuration

  • UL Class 1, Division II Certification and ATEX/ IECEx approvals

Módulo 8 entradas Module data sheet
