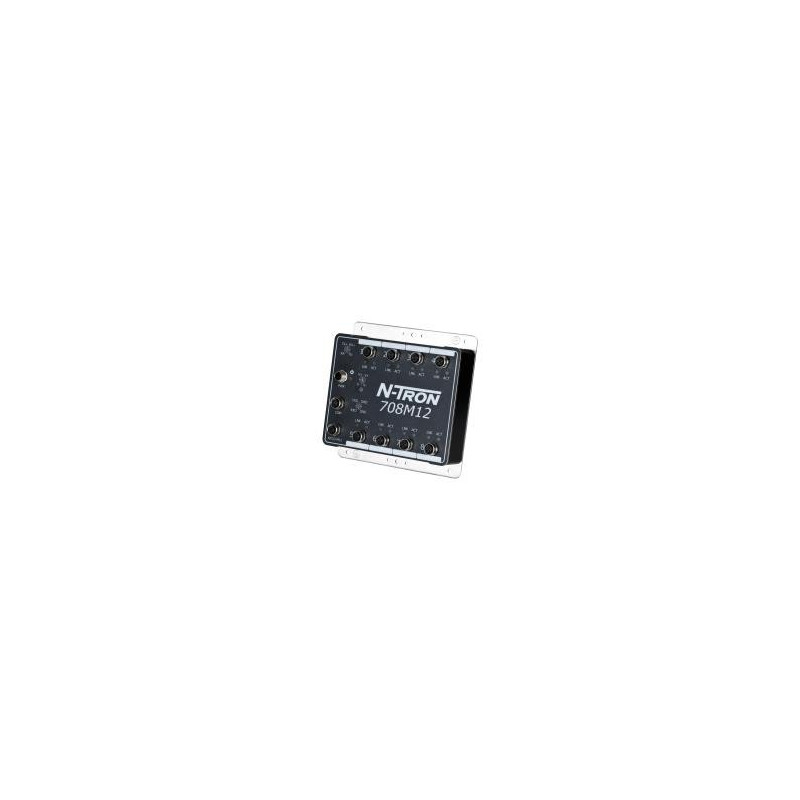

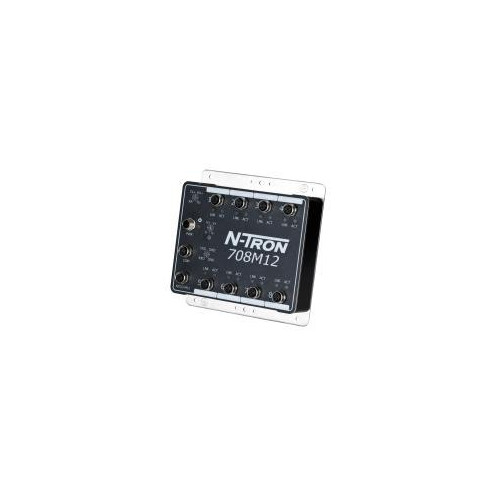

708M12 IP67 Managed Ethernet Switch for outdoor use

For applications in extreme environments, check out Red Lion's N-Tron® series 700 managed industrial Ethernet switches. Our 700 managed industrial Ethernet switches support SNMP, web management, Fast Ethernet and N-View™ monitoring technology. Housed in rugged enclosures, the 700 managed Ethernet switches feature extended shock and vibration specifications, wide operating temperature ratings and best-in-class ring technology, providing 30 ms healing times.

specifications:

• 8 Port IP67 Industrial Ethernet Switch:
  • Eight 10/100BaseTX M12 D-Coded Ports
• -40°C to 80°C Operating Temperature
• ESD and Surge Protection on all Built-in Ports
• Auto Sensing 10/100/1000BaseTX, Duplex, and MDIX
• Redundant Power Input (10 - 30 VDC)
• Configurable Bi-Color Fault Status LED
• IP67 Rated Hardened Metal Enclosure for outdoor use :
  • Bulkhead Mountable (Optional DIN-Rail mounting)
  • Dustproof
  • Protection against low/high pressure water jets
  • Temporary immersion in water
• Fully Managed Features:
  • SNMP v1, v2, v3 and Web Browser Management
  • Multi-Member N-Ring™ Technology with ~30ms Healing
  • N-Link™ Redundant Ring Technology
  • N-View™ Monitoring Technology
  • EtherNet/IP™ CIP™ Messaging
  • Web configuration
  • IGMP Auto Configuration
  • 802.1Q tag VLAN and Port VLAN
  • 802.1p QoS and Port QoS
  • Port Trunking
  • Port Mirroring
  • 802.1d, 802.1w, 802.1D RSTP
  • DHCP Server with Option 82 Relay, Option 61, and IP Fallback
  • Local Port IP Addressing
  • 802.1AB-2005 LLDP (Link Layer Discovery Protocol)
  • Port Security - MAC Address Based Filtering
