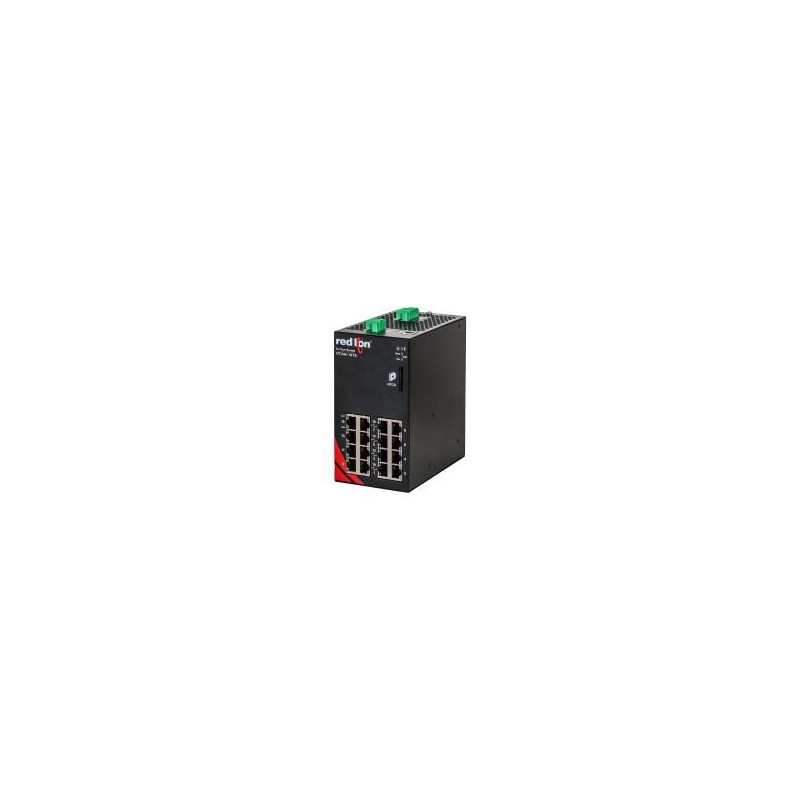

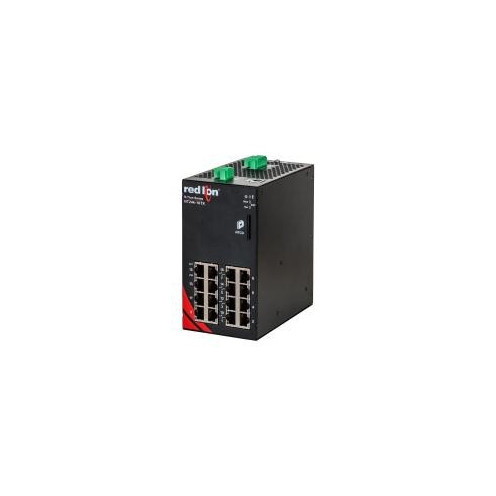

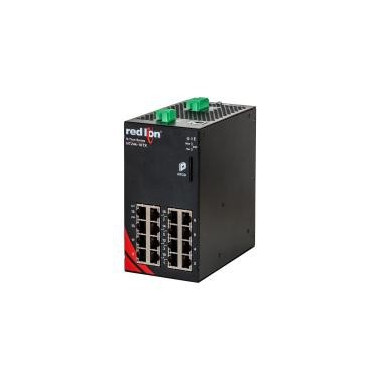

NT24K-16TX All-Gigabit Managed Switches

Red Lion's N-Tron® series NT24k® Gigabit managed industrial Ethernet switches are available in rackmount or DIN-rail mountable configurations. The NT24k platform offers a wide array of port configurations, media types and Power over Ethernet Plus (PoE+) models including 10/100/1000 copper, and Fast Ethernet and Gigabit fiber options.

All NT24k switches are plug-and-play installable with IGMP auto-configuration, media/port auto-detection and simple ring configuration, making the NT24k platform one of the easiest to deploy managed switches in the industry. Housed in rugged hardened enclosures, the NT24k switches feature extended shock and vibration specifications, wide operating temperature ratings and best-in-class ring technology.

specifications:

• 16 Port Gigabit Managed Industrial Ethernet Switch :
  • 16 10/100/1000BaseTX RJ-45 Ports
• -40°C to 80°C Operating Temperaturee
• ESD and Surge Protection on all Built-in Ports
• Auto Sensing 10/100/1000BaseTX, Duplex, and MDIX
• Store-and-forward Technology
• Redundant Power Input (10 - 49 VDC)
• Jumbo Frame Support
• 16k MAC Addresses
• Detailed Ring Map and Fault Location Charting
• USB Configuration Port
• Configurable Alarm Contact
• Configurable Bi-Color Fault Status LED
• Rugged Industrial DIN-Rail Enclosure
• Fully Managed Features:
  • SNMP v1, v2, v3 and Web Browser Management
  • 802.1x with RADIUS Remote Server Authentication
  • Multi-Member N-Ring™ Technology with ~30ms Healing
  • N-Link™ Redundant Ring Technology
  • N-View™ Monitoring Technology
  • EtherNet/IP™ CIP™ Messaging
  • Web configuration
  • IGMP Auto Configuration
  • 802.1Q tag VLAN and Port VLAN
  • 802.1p QoS and Port QoS
  • Port Trunking
  • Port Mirroring
  • 802.1d, 802.1w, 802.1D RSTP
  • SNTP
  • Event Log
  • Local Port IP Addressing
