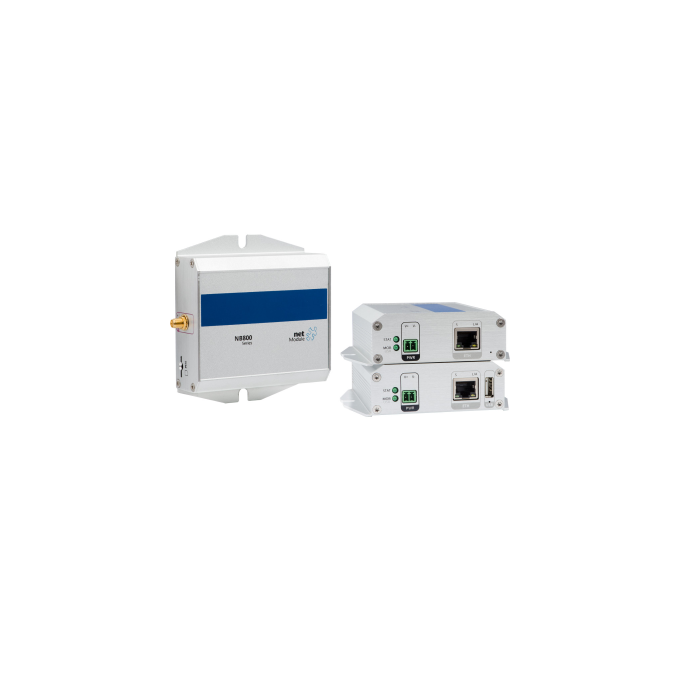

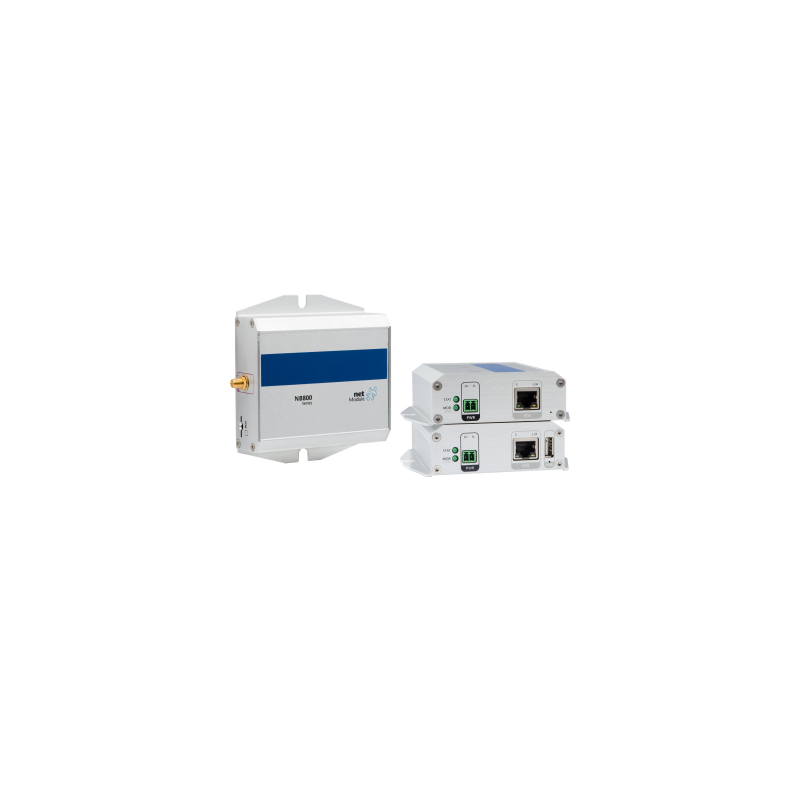

LoT industrial grade router for stationary applications in harsh environments

LoT industrial grade router for stationary applications in harsh environments

NB800 UMTS
Net Module Más productos



The NB800 enables robust Internet connection for vending machines or ticketing. Its modular design supports a wide range of protocols addressing the fast developing Internet of Things (IoT).



Política de entrega (editar con el módulo de Información de seguridad y confianza para el cliente)

The industrial grade router provides key technologies to access any kind of applications in the Internet, but also Intranet sites and remote stations which can be connected via its powerful VPN protocol suite including OpenVPN and IPsec.

The integrated modem supports or UMTS networks and ensures WWAN connectivity. Ethernet and USB open further possibilities to integrate sensors and actuators easily into the network.
A hardware shield concept brings additional flexibility to turn the NB800 into an application specific tailored device (OEM) or to follow the technology changes. By now, shields with dual CAN or digital I/Os and serial interfaces are available.

The durable aluminum housing suitable for wall-mounting in combination with the supported temperature range -40 °C to 70 °C stands for its robustness. NB800 resists mechanical and thermal stress.

The router software is based on well proven components including an embedded Linux operating system and a wide range of communication and routing protocols as VLAN, Mobile IP, OSPF, BPG and RSTP.
It's possible to run customer applications in a LXC Container. An SDK gives programmers a great tool to implementing all kind of applications with simple scripts. Data preprocessing can be done directly on the router, thus saving an additional IPC.
Other features include a smart Link Manager for optimized cellular connections, Quality of Service (QoS) for an efficient data exchange, E-Mail and SMS for alarming and notifications, a web server and RADIUS authentication.

FEATURES

  • UMTS/GSM
  • Ethernet
  • Expandability by shields
  • NetModule Router Software
  • SDK Scripting & LXC
  • Small form factor
  • Fanless
Router industrial
Mobile / Cellular 1 Multimode UMTS and GSM module
Ethernet 1 Ethernet port, 10/100 Mbps, auto MDIX
Connector type RJ45
Bit Rates up to 1Mbps; RS-485 bus termination: 120R (configurable)
Extension connector: 6 pin terminal block, 3.5 mm pitch
MTBF >440.000h depending on model
Storage 4GB internal
Power Nominal Input Voltages: 12VDC (+/-20%), 24VDC (+/-20%)
Environment Operational temperature: -40 °C to +70 °C; Storage temperature: -40 °C to +85°C
USB USB 2.0 Host Port, USB A connector type
Dimensions, weight  Width 85/111mm x height 32mm x depth 110mm, ca. 250g
Compliance CE according to 2014/53/EU (RED), 2011/65/EU (RoHS), 2012/19/EU (WEEE), 1907/2006/EC (REACH)
Standards

EN 62368-1, EN 62311, EN 55024, EN 55032, EN 61000-6-2, EN 61000-6-3, EN 301 489-1, EN 301 489-7, EN 301 489-17,

EN 301 489-24,EN 300 328, EN 301 511, EN 301 893, EN 301 908-1, EN 301 908-2, EN 301 908-13
Order numbers NB800-USu

(contact sales for more models, options or project specific adaptations)  UMTS/GSM Router + USB

NB800-UMTS
