Logger for level and flow control of temperature Comet

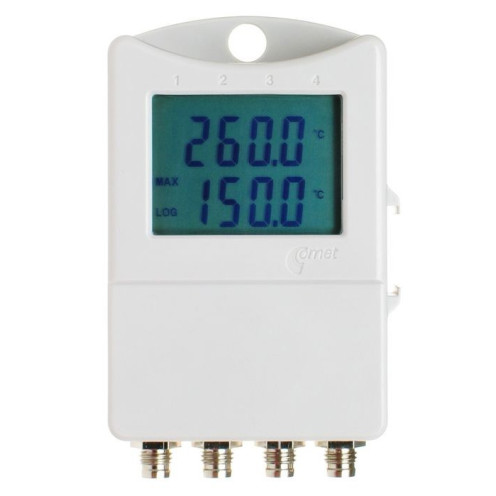

These COMET Data Logger are designed for recording and direct measurement (depending on model) of temperature and relative humidity of the air, in combination with voltage signals 0-5V optionally. They have a non-volatile memory with 32000 record capacity values. The measurements recorded in memory can be downloaded to a PC via USB interface, RS232, Ethernet or GSM and proceed to further treatment with SW001 software supplied with the equipment.

COMMON FEATURES OF THESE DATA LOGGER

• 32000 memory capacity values.
• Two recording modules: cyclic or noncyclic.
• Basic accuracy ± 0.2 ° C.
• Battery life up to 7 years.
• Display models with maximum and minimum visualization values.
• Two alarm thresholds per channel with overrun indication on the display or LED (models without display)

. 2 years warranty

MODES OF COMMUNICATIONS WITH THE PC

• USB port.
• RS232 serial communication.
• Over Ethernet. Using this type of communication, users will be able to define the desired temperature ranges, and if exceeded, they will alert us with an email to the address indicated.
• These thermometers are designed for temperature recording. According to EN12830

APPLICATIONS

• Transport
• Storage and distribution of refrigerazed and frozen foods.
• Protection: IP67

LOGGERS WITH DISPLY

Model        Description
S0110 1    channel with internal sensor
S0111 1    channel for external sensor
S0121 2    channels for external sensors
S0122 2    channel measurement ( internal and external sensor )
S0141 4    channels for external sensors
S0841 2    channels for external sensors + 2 tickets for binary signals

LOGGERS WITHOUT DISPLAY

Model         Description
R0110 1     channel with internal sensor
R0110E 1  channel with internal sensor
