FlexEdge, DA70D Controller with one RS-232 port and two RS-485 ports

DA70D Controller with one RS-232 port and two RS-485 ports

The DA70D's modular design allows up to three communication sleds to be added as requirements change or new communication standards emerge. Robust, field-installable PID control and I / O modules ensure a solution that is tailored to meet almost any industrial application need, while the diagnostic light ring offers a quick overview of system operation. Regardless of the brand of PLC or other specified equipment, the FlexEdge platform, with Crimson® technology, enables connectivity to virtually anything in your system.

FEATURES

• Intuitive diagnostic light ring for system status indication at a glance Point-and-click connectivity to IIoT cloud platforms

• The integrated OPC UA server and client allow seamless communication with the upstream system
• Advanced web server with Javascript, Bootstrap, CSS and HMTL5 support provides visibility of operations anywhere
• Three wide screen virtual HMI options for remote monitoring and control
• Registration of data, events and security in real time with cryptographic signature support
• Future-proof modular design accommodating field-installable sleds
• 802.11 b / g / n Wi-Fi Client (with WI-FI communications sled)

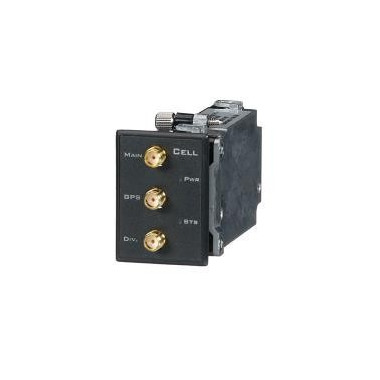

• Dual SIM 4G LTE modem with active GPS (with cellular communications sled)

DimensioN

SPECIFICATIONS

• Two 10 / 100Base-T (X) Ethernet ports

• One (1) isolated RS-232 serial port

• One (1) isolated RS-232 serial port

• Integrated memory: 1 GB flash memory

• Expansion memory: up to 256 GB, micro SD

• 12-24 VDC +/- 15%

• -40 to 75 C Operating temperature

• UL Class 1, Div 2 Certification Certification

• ATEX / IECEx
