FlexEdge, DA70D Controlador con un puerto RS-232 y dos puertos RS-485

FlexEdge, DA70D Controller with two RS-232 ports and one RS-485 port

DA70D0GNNNNNN000
Red lion Controls Más productos

The DA70D's 3-sled modular design allows up to three communications sleds to be added as connectivity requirements change or new standards emerge. Robust and field installable PID. Control and I / O modules guarantee a solution that is tailored to meet almost any industrial application needs.

Shipped standalone or as part of a pre-built FlexEdge solution, this rugged, field-installable sled adds 4G LTE communication with active GPS to any application. Provides high speed connectivity to enable real-time monitoring and control.



Política de entrega (editar con el módulo de Información de seguridad y confianza para el cliente)

DA70D Controller with one RS-232 port and two RS-485 ports

The DA70D's modular design allows up to three communication sleds to be added as requirements change or new communication standards emerge. Robust, field-installable PID control and I / O modules ensure a solution that is tailored to meet almost any industrial application need, while the diagnostic light ring offers a quick overview of system operation. Regardless of the brand of PLC or other specified equipment, the FlexEdge platform, with Crimson® technology, enables connectivity to virtually anything in your system.

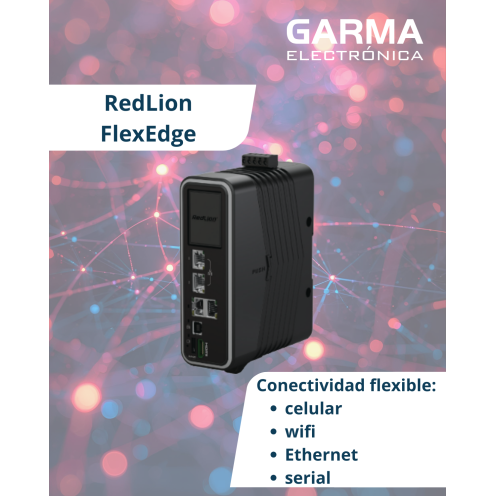

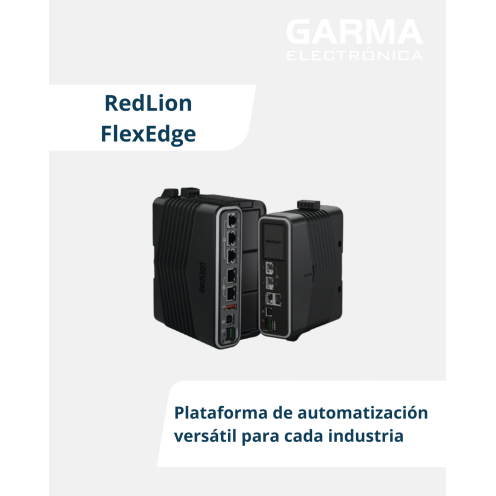

 FlexEdge DA70

FEATURES

  • Intuitive diagnostic light ring for system status indication at a glance Point-and-click connectivity to IIoT cloud platforms

  • The integrated OPC UA server and client allow seamless communication with the upstream system
  • Advanced web server with Javascript, Bootstrap, CSS and HMTL5 support provides visibility of operations anywhere
  • Three wide screen virtual HMI options for remote monitoring and control
  • Registration of data, events and security in real time with cryptographic signature support
  • Future-proof modular design accommodating field-installable sleds
  • 802.11 b / g / n Wi-Fi Client (with WI-FI communications sled)
  • Dual SIM 4G LTE modem with active GPS (with cellular communications sled)

DimensioN

DA70D dimensiones

SPECIFICATIONS

  • Two 10 / 100Base-T (X) Ethernet ports

  • One (1) isolated RS-232 serial port

  • One (1) isolated RS-232 serial port

  • Integrated memory: 1 GB flash memory

  • Expansion memory: up to 256 GB, micro SD

  • 12-24 VDC +/- 15%

  • -40 to 75 C Operating temperature

  • UL Class 1, Div 2 Certification Certification

  • ATEX / IECEx

DA70D Controlador DA70D Data sheet
