FGX Magnetic Float Level Transmitter, EX optional| Finetek
FGX
FGX Magnetic Float Level Transmitter, Liquid Level Transmitter (Explosion Proof units available)
FG series are magnetic float level transmitter devices using the principles of buoyancy and magnetism to generate a changing electrical output in response to the rise and fall of the float on the sensing guide rod. The magnetic float level transmitter provides a 3-wire resistance output or can be equipped with an appropriate level transmitter to provide a 4-20mA analog signal indicating liquid level. The sensing guide rod includes a series of reed switches along the entire measuring length. Placement of reed switches provides either of two possible measuring resolutions..svg)
Política de entrega (editar con el módulo de Información de seguridad y confianza para el cliente)

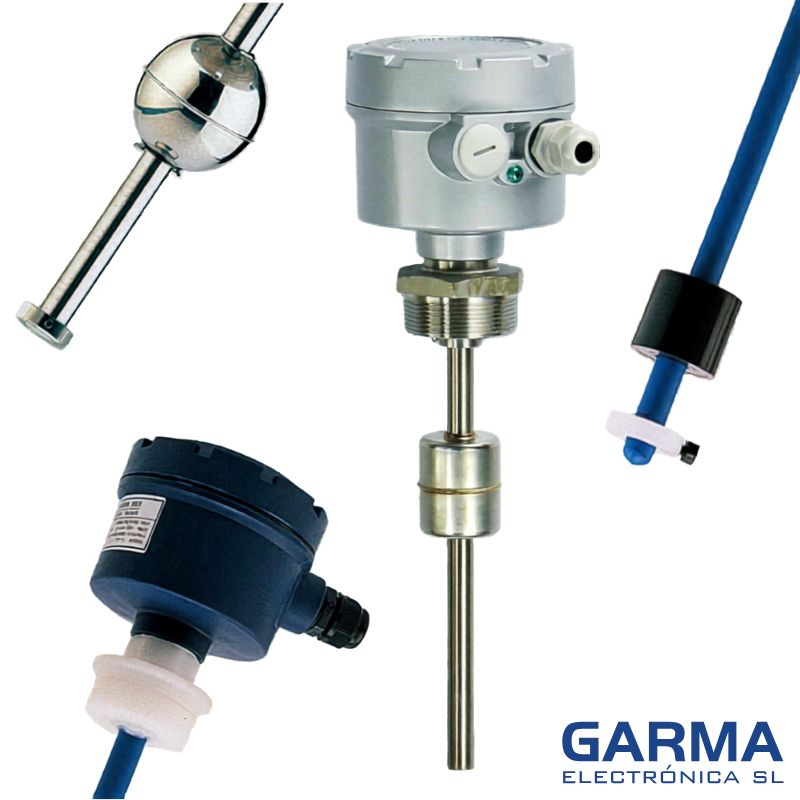

The "Magnet Float Level Indicator" is composed of the float and sensing rod (shown as below). As the float raised or lowered by liquid level, the sensing rod will have a resistance output, which is directly proportional to the liquid level. Also, the float level indicator can be equipped with the TAB-1531 to produce a 0/4~20mA signal. In addition, we can use with PB series bargraphic display scaling panel meter for level control and display. Anyway, "Magnet Float Level Indicator" is a great benefit to all kinds of industries with its easy working principle and reliability.
features
- Every sensing element is protected by a plastic package, safety in use and transport.
- High performance and reliability of electric circuit modular designed.
- Lower installation costs, less maintenance, reduced personnel training, and decreased plant shock down time.
